Surfer

Product Name:

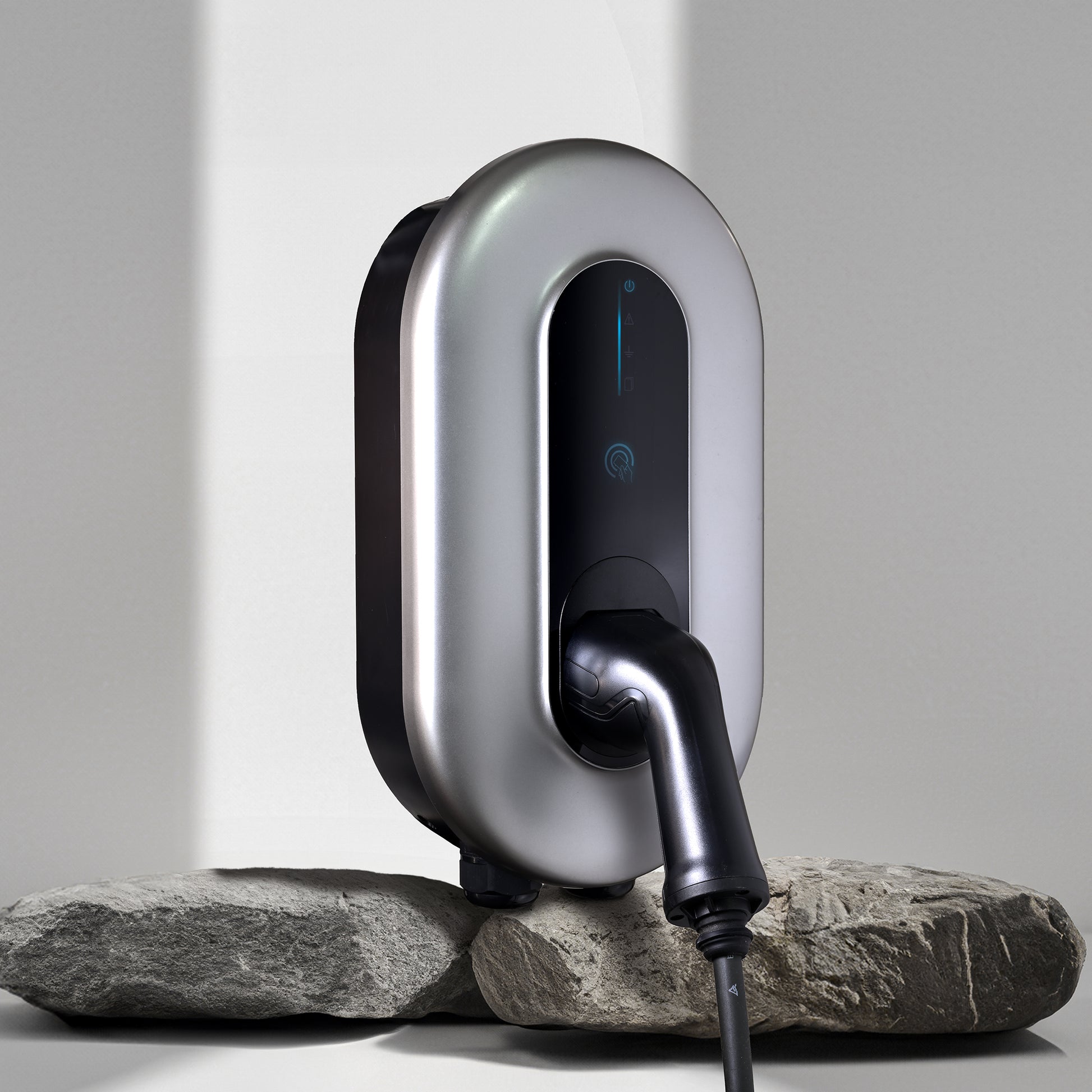

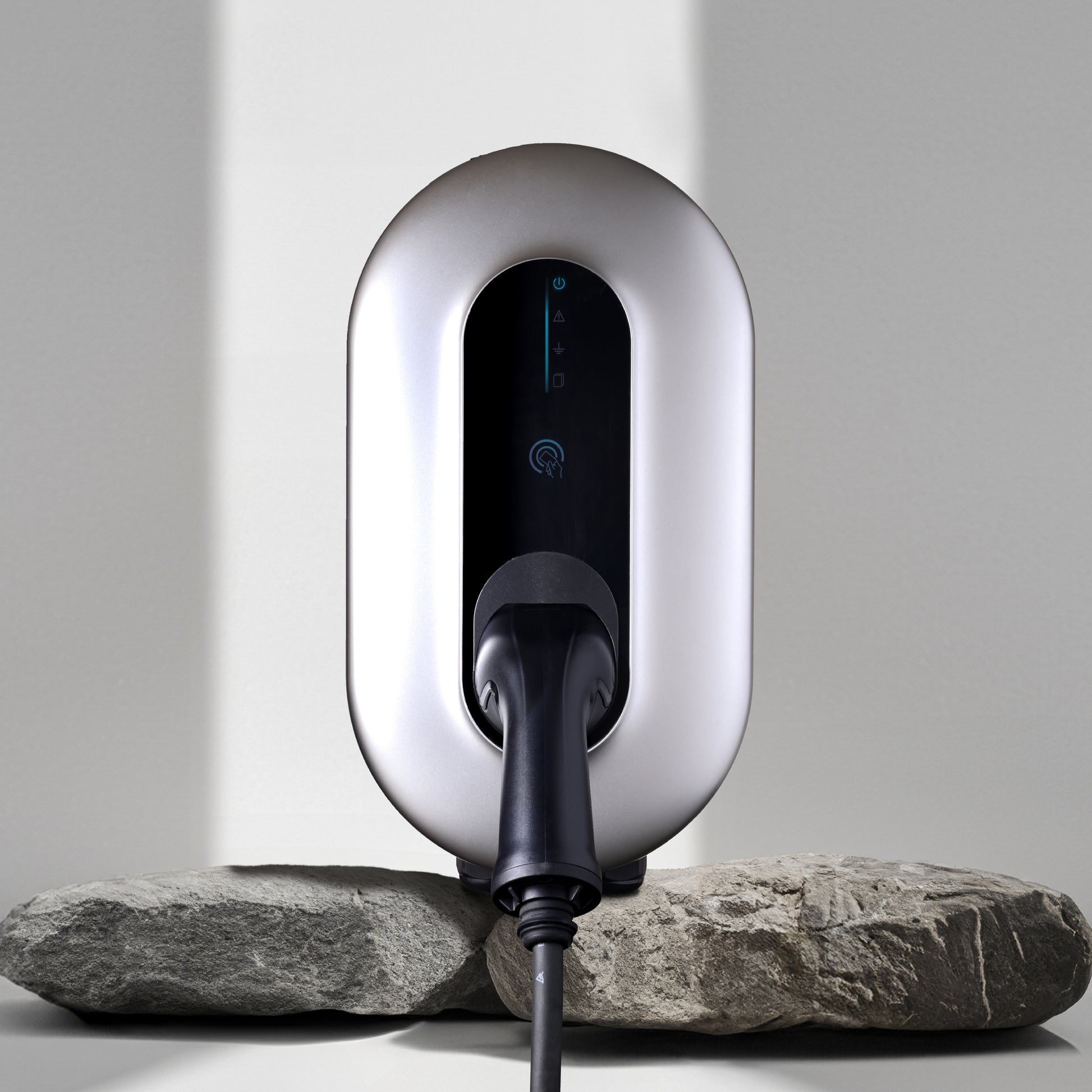

VoltMax Home EV Charger – Level 2

Charging Power:
Up to 11.5 kW (48A)

Input Voltage:
240V AC

Output Current:
Adjustable from 16A to 48A

Connector Type:
SAE J1772 (Type 1)

Cable Length:
25 ft

Charging Speed:
Up to 37 miles of range per hour

Wi-Fi Enabled:
Yes – control via mobile app

Smart Features:
Scheduled charging, energy usage tracking

Weatherproof Rating:
NEMA 4 – suitable for indoor and outdoor installation

Operating Temperature:
-22°F to 122°F (-30°C to 50°C)

Installation Type:
Hardwired or NEMA 14-50 plug option

Dimensions:
13” H x 7” W x 3.5” D

Certifications:
UL Listed, Energy Star Certified

Warranty:
3 Years

1. What is a home EV charger and how does it work?
A home EV charger is a device that allows you to safely and efficiently charge your electric vehicle using your home’s electrical system. It connects to your vehicle via a charging cable and supplies power to recharge the battery.

2. How long does it take to charge an electric vehicle at home?
Charging time depends on your charger’s power level and your vehicle’s battery size. A Level 2 charger (240V) typically adds 20–30 miles of range per hour and can fully charge most EVs overnight.

3. Do I need a professional to install the charger?
Yes, it’s highly recommended. Level 2 chargers require a dedicated 240V circuit, and a licensed electrician should install it to ensure safety and compliance with local codes.

4. Can I use a regular wall outlet to charge my EV?
You can use a standard 120V outlet (Level 1 charging), but it's much slower — usually only 3–5 miles of range per hour. It’s best suited for occasional or emergency charging.
